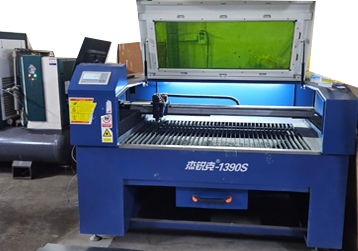

CO2 laser machine 600 Watts 1390S

1. Key Features:

• Laser Type: CO2 (Carbon Dioxide) laser tube.
• Laser Power: 600W for high-speed cutting and engraving.
• Laser Head: High precision laser head for accurate work.
• Work Area: 1300mm x 900mm (approximately 51.2" x 35.4") large engraving and cutting area.
• Cooling System: Water cooling for maintaining the temperature and protecting the laser tube.
• Control Panel: Advanced digital control panel with an intuitive interface for easy adjustments.
• Laser Beam Quality: Consistent laser beam for precise and clean cuts.
• Speed Control: Adjustable cutting and engraving speeds for flexible applications.
• Cutting and Engraving: Capable of both cutting and engraving various materials.
• USB Connectivity: Supports USB for easy file transfer and direct machine control.
• Automatic Focus: Automatic lens focusing for convenience and precision.
• Motion System: High-quality stepper motors for stable and fast motion.
• Software Compatibility: Works with popular software like CorelDRAW, AutoCAD, and Adobe Illustrator.

2. Technical Specifications:

• Laser Power: 600W CO2 Laser Tube.
• Laser Type: Sealed CO2 laser tube.
• Laser Wavelength: 10.6 µm.
• Cutting Speed: Up to 40mm/s (depending on material).
• Engraving Speed: Up to 1000mm/s (depending on material).
• Engraving Resolution: Up to 1000 DPI (dots per inch).
• Maximum Cutting Thickness: Up to 25mm (varies by material).
• Minimum Line Width: 0.1mm.
• Motion System: Stepper motor for high precision.
• Interface: USB 2.0 interface, Ethernet optional.
• Cooling System: Water-cooled system (CW-5000 or similar).
• Control System: Ruida DSP controller.
• Power Supply: AC 220V ± 10% or AC 110V ± 10%, 50-60 Hz.
• Operating Temperature: 0 - 45°C.
• Operating Humidity: 5 - 95% (non-condensing).
• Dimensions: Approx. 1950mm x 1360mm x 1220mm.
• Weight: Approx. 500kg.

3. Applications:

• Woodworking: Engraving and cutting of wood and plywood for furniture, decoration, and crafts.
• Acrylic: Engraving and cutting acrylic sheets for signs, displays, and artistic projects.
• Leather: Cutting and engraving leather for fashion, bags, and shoes.
• Glass: Engraving on glass for awards, gifts, and custom designs.
• Textiles: Cutting and engraving fabrics, including cotton, silk, and polyester.
• Rubber: Engraving and cutting rubber stamps and seals.
• Plastic: Engraving and cutting plastics such as PVC, ABS, and polycarbonate.
• Stone: Engraving on stone or marble for personalized plaques and gifts.
• Metal (with special coating): Marking and engraving metals with an anodized or coated surface (such as anodized aluminum).

4. Benefits:

• High Precision: Offers excellent precision for detailed engraving and cutting.
• Versatility: Capable of working with a variety of materials, from wood to metals (with coating), providing flexibility for diverse industries.
• Fast Production: High-speed engraving and cutting capabilities increase productivity and efficiency.
• Low Maintenance: Requires minimal upkeep due to its robust design and reliable components.
• Cost-Effective: Compared to other industrial laser machines, CO2 lasers offer lower operational costs in terms of energy usage.
• Ease of Use: User-friendly interface with clear controls and easy setup. Compatible with common design software.
• Clean Cuts: Produces smooth, clean cuts with minimal post-processing required, reducing material wastage.
• Safety Features: Equipped with safety sensors and mechanisms to protect users during operation.
• Environmentally Friendly: Produces little to no pollutants and uses a sustainable energy source compared to other methods.
